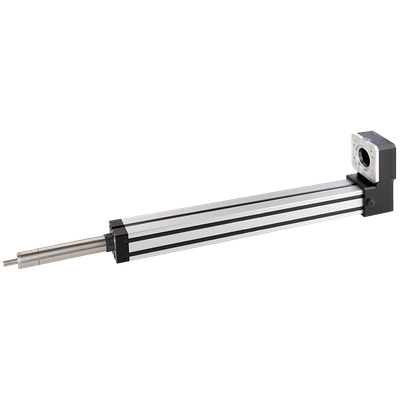

Linear Actuator SLZ63
Stroke: max. 1,000 mm | Force: max. 15,000 N | Speed max. 1,250 mm/s
Features
Freely selectable drive (three-phase motor / servo motor / stepper motor)
Short installation height due to parallel motor adaption
Variable fixation options
DIN ISO 15552
Non-rotating stainless steel push rod
Linear Actuator SLZ 63 – Heavy Duty Actuator
Due to the parallel mounting of the motor, the SLZ 63 heavy-duty linear actuator has an optimum installation-stroke ratio. Its maximum stroke length is 1,000 mm. The SLZ 63 actuator can be flexibly integrated into a wide variety of applications thanks to grooves in the outer profile and connection dimensions in accordance with DIN ISO 15552.
Technical Data
General Data | |
|---|---|
| Force | Max. 15,000 N |
| Speed | Up to 1250 mm/s (depending on motor selection) |
| Stroke Length | Max. 1,000 mm |
| Installation Dimension | 375mm + Selected Motor Length |
| Motor voltage | 3-Phase or Servo Motor Compatibility |
| Degree of Protection | IP 54 (Or depending on motor selection) |
| Duty Cycle | Up to 100% (depending on motor selection) |
Configure Your Own Linear Actuator And Get The CAD Data
With our 3D CAD Product Configurator, you can create customized 3D STEP files for all our linear actuators to match your needs and requirements. The files are rendered and output directly, enabling you to incorporate them into your design and development processes. You receive the generated STEP files by e-mail. These can then be integrated directly into your application.
