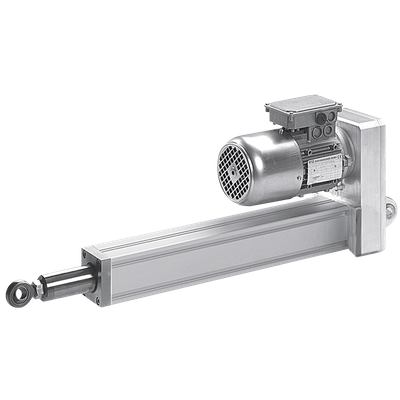

Linear Actuator SLZ90
Stroke: max. 2,000 mm | Force: max.25,000N | Speed max. 933 mm/s
Features
Choice of drives (3-phase motor/servo motor)
Flexible use of space due to different motor configurations
Coverable slot geometry on both sides supports a range of fixing options for attachments
Push rod with rotation locking
Protection class IP 54
Linear Actuator SLZ 90 – Heavy Duty Actuator
The duty cycle of 100% makes the SLZ heavy-duty linear actuator an interesting and reliable continuous runner for industrial applications. The modular design offers flexibility when equipping with different drive concepts.
Technical Data
General Data | |
|---|---|
| Force | Max. 25,000 N |
| Speed | Up to 933 mm/s (depending on motor selection) |
| Stroke Length | Max. 2,000 mm |
| Installation Dimension | 294 mm + Stroke + Selected Motor Length |
| Motor voltage | 3-Phase or Servo Motor Compatibility |
| Degree of Protection | IP 54 (Or depending on motor selection) |
| Duty Cycle | Up to 100% (depending on motor selection) |
