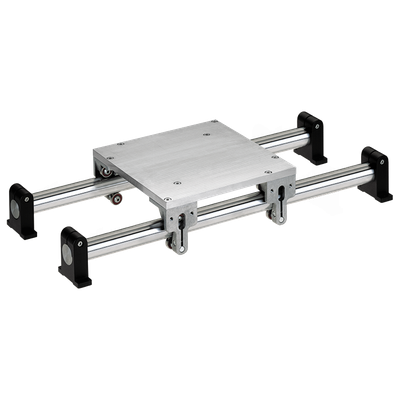

Linear Guide RE
Stroke: max. 3,000mm
Features
Large plate for easy component mounting
Adjustable rollers with zero backlash
Hardened shaft guide element
Simple, robust, and cost-effective design
RE Linear Guide
Solid guide for simple adjustments with medium loads.
Technical Data
General Data | |
|---|---|
| Construction Size | 30, 40 |
| Stroke Max. | 3000 mm |
| Fy Max. | 330 - 600 N |
| Fz. Max. | 1600 - 2400 N |
| Mx Max. | 65 - 155 Nm |
| My Max. | 65 - 155 Nm |
| Mz Max. | 20 - 65 Nm |
