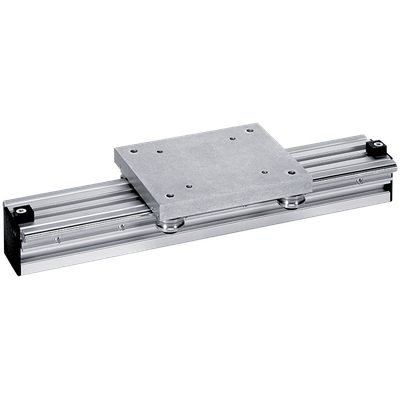

SQL Profile Linear Guide
Stroke: max. 5,750mm
Features
Compatible with BLOCAN® slot geometry
Slim, large carriage design
Cost-Effective for medium to heavy loads
Stroke lengths up to 5,750 mm
SQL Linear Guide
Low-cost guide for medium to heavy loads.
Technical Data
General Data | |
|---|---|
| Construction Size | 40, 60, 80, 120, 160 |
| Stroke Max. | 5750 mm |
| Fy Max. | 1500 - 2500 N |
| Fz. Max. | 1000 - 1500 N |
| Mx Max. | 50 - 134 Nm |
| My Max. | 70 - 121 Nm |
| Mz Max. | 140 - 243 Nm |
