SQ-ZST Linear Unit
Stroke: max. 29530mm
Features
Custom motor and adaptor options
Easy load and baseframe connection
Direct drive via spur gear
Optional holder for inductive limit switch

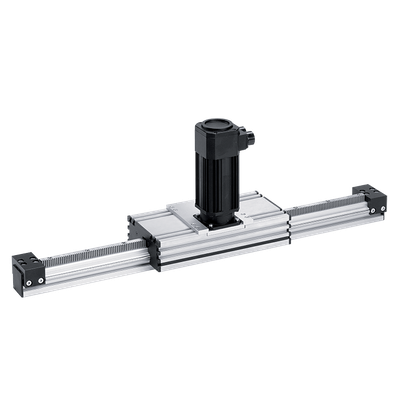

Linear Unit SQ-ZST
Rack drive linear unit for large strokes up to 30 meters.
Technical Data
General Data | |
|---|---|
| Construction Size | 60, 80 |
| Stroke Max. | 29530 mm |
| Fx max. | 1132 N |
| Fy Max. | 2550 N |
| Fz. Max. | 2550 N |
| Mx Max. | 99 - 124 Nm |
| My Max. | 171 - 201 Nm |
| Mz Max. | 171 - 201 Nm |
