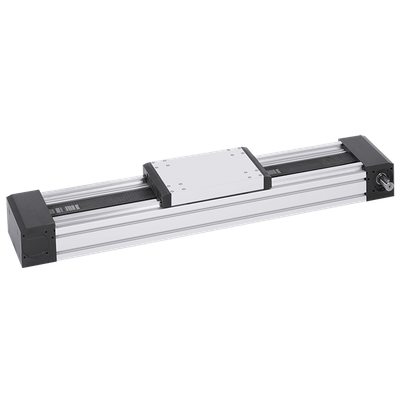

MultiLine Linear Unit
Stroke: max. 5,620mm
Features
Compact 100×200 mm guide profile
Compatible with BLOCAN® System
Flat, Space-saving design
Durable ball rail guide
MultiLine – Ball Rail Linear Unit
Compact ball rail linear unit for high loads.
Technical Data
General Data | |
|---|---|
| Construction Size | 200 |
| Stroke Max. | 5620 mm |
| Fx Max. | 4700 N |
| Fy Max. | 8200 N |
| Fz. Max. | 12000 N |
| Mx Max. | 720 Nm |
| My Max. | 900 Nm |
| Mz Max. | 900 Nm |
