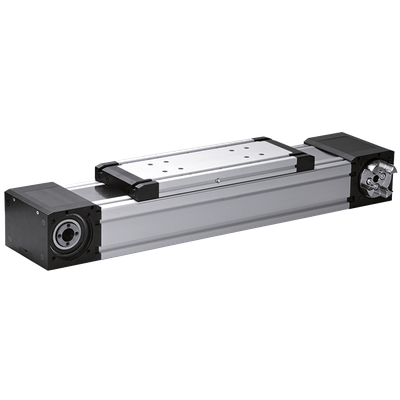

RK DuoLine Z
Stroke: max. 9,010mm
Features
IP40 protection via enclosed cover strip
Integrated sensing for high positioning accuracy
Elasticity compensation via motor controller
Central lubrication access for easy maintenance
RK DuoLine Z – Ball Rail Linear Unit
All-round talent with encapsulated guide system.
Technical Data
General Data | |
|---|---|
| Construction Size | 60, 80, 120, 160 |
| Stroke Max. | 5,665 - 9,010 mm |
| Fx Max. | 1,000 - 6,000 N |
| Fy Max. | 700 - 5,100N |
| Fz. Max. | 2,500 - 8,900 N |
| Mx Max. | 48 - 500 Nm |
| My Max. | 160 - 1,200 Nm |
| Mz Max. | 140 - 1,150 Nm |
