RK MonoLine Z
Stroke: max. 5,784mm
Features
High efficiency with low idle torque
Maximum travel speed
Central lubrication access
Reliable clamping strip for secure positioning

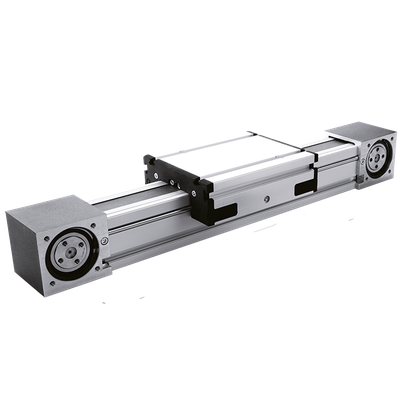

Linear Unit – RK MonoLine Z
The RK MonoLine offers optimal connection options via slots in the guide profile, carriage, and guided timing belt.
Technical Data
General Data | |
|---|---|
| Construction Size | 40, 60, 80, 120 |
| Stroke Max. | 5465 - 5780 mm |
| Fx Max. | 480 - 4800 N |
| Fy Max. | 1100 - 9400 N |
| Fz. Max. | 694 - 5200 N |
| Mx Max. | 14 - 280 Nm |
| My Max. | 35 - 1010 Nm |
| Mz Max. | 55 - 1780 Nm |
