Injection Moulding IoT Enclosures

This injection-molded IoT button enables a wireless connection to a LoRaWAN-based gateway over a distance of up to 15 km (line of sight). It can be used as a service-on-demand button, remote control, emergency button, or notification button.

Our task was to develop a housing for the delivered electronics with the following requirements: - Modern and ergonomic design - Easily accessible battery compartment - Four modularly assembled variants - Impact resistance - Competitive assembly time Another exciting challenge for us!

Design created the cornerstones for such a button. Aesthetic, handy, and user-friendly were the requirements to be presented to the customer. From our own design drafts of the IoT button to the production of injection-mouldable prototypes, toolmaking, and the actual final product in series production, we were able to deliver the button fully functional and ready for use in the end.

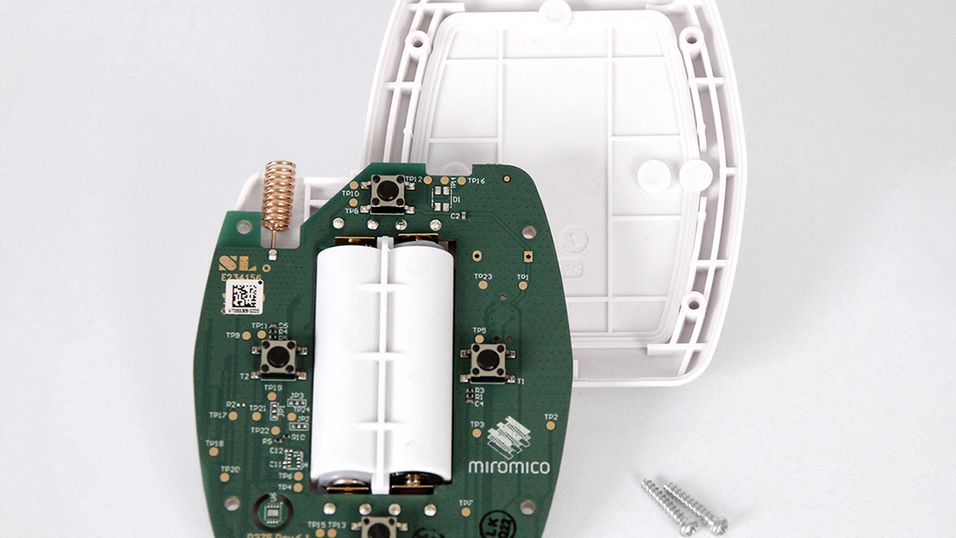

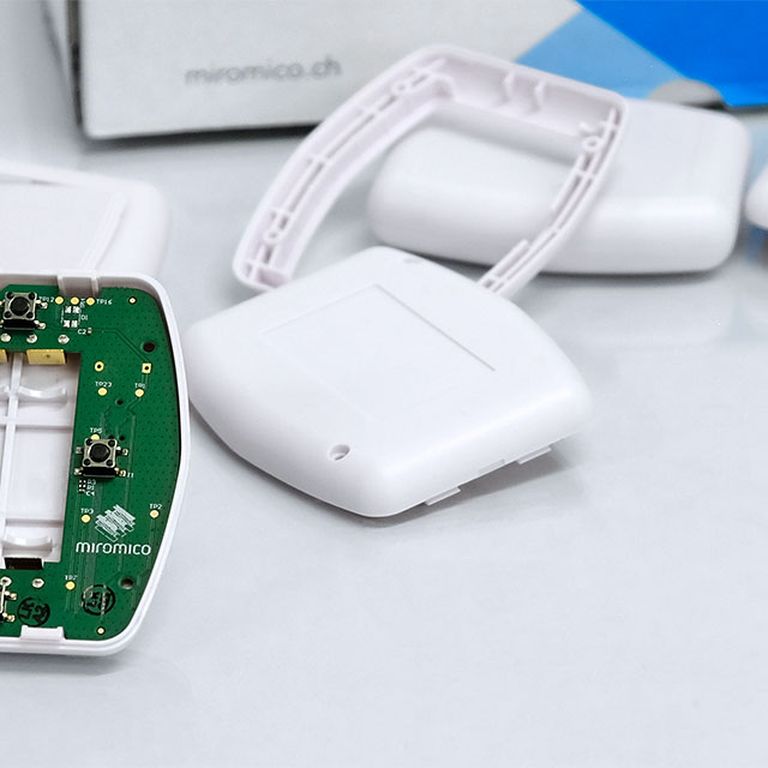

An unbeatable short assembly time and ease of handling were decisive points for the customer, which we successfully implemented. This makes it possible to produce large series orders within a very short time. All parts are made of injection-moulded plastic, which are assembled by lightly placing one inside the other and then clipping them together. A lot of attention was also paid to the easy replacement of the batteries.
